G5709
高分辨率、高精度保持力矩可达1.91N-m
常用标准电机参数，更多选择请访问英文官网
|
型号 |
NEMA |
步距角 |
接线 |
机身长度 in (mm) |
额定电流 (A) |
保持力矩 oz-in (Nm) |
电阻 （欧姆） |
转动惯量 oz-in2 |
整机重量 lbs |
引线数量 |
|
G5709X-01S |
23 |
0.9° |
串联 |
1.74(44.2) |
1.40 |
83.0(0.59) |
4.30 |
0.70 |
1.05 |
4 |
|
G5709X-01P |
23 |
0.9° |
并联 |
1.74(44.2) |
2.80 |
83.0(0.59) |
1.07 |
0.70 |
1.05 |
4 |
|
G5709X-15S |
23 |
0.9° |
串联 |
1.74(44.2) |
2.10 |
83.0(0.59) |
1.89 |
0.70 |
1.05 |
4 |
|
G5709X-15P |
23 |
0.9° |
并联 |
1.74(44.2) |
4.20 |
83.0(0.59) |
0.47 |
0.70 |
1.05 |
4 |
|
G5709M-02S |
23 |
0.9° |
串联 |
2.20(55.9) |
2.10 |
169.0(1.19) |
2.53 |
1.50 |
1.50 |
4 |
|
G5709M-02P |
23 |
0.9° |
并联 |
2.20(55.9) |
4.20 |
169.0(1.19) |
0.61 |
1.50 |
1.50 |
4 |
|
G5709L-01S |
23 |
0.9° |
串联 |
3.08(78.2) |
1.40 |
270.0(1.91) |
0.59 |
2.60 |
2.60 |
4 |
|
G5709L-01P |
23 |
0.9° |
并联 |
3.08(78.2) |
2.80 |
270.0(1.91) |
1.44 |
2.60 |
2.60 |
4 |
|
G5709L-08 |
23 |
0.9° |
双极 |
3.08(78.2) |
1.44 |
270.0(1.91) |
5.42 |
2.60 |
2.60 |
4 |

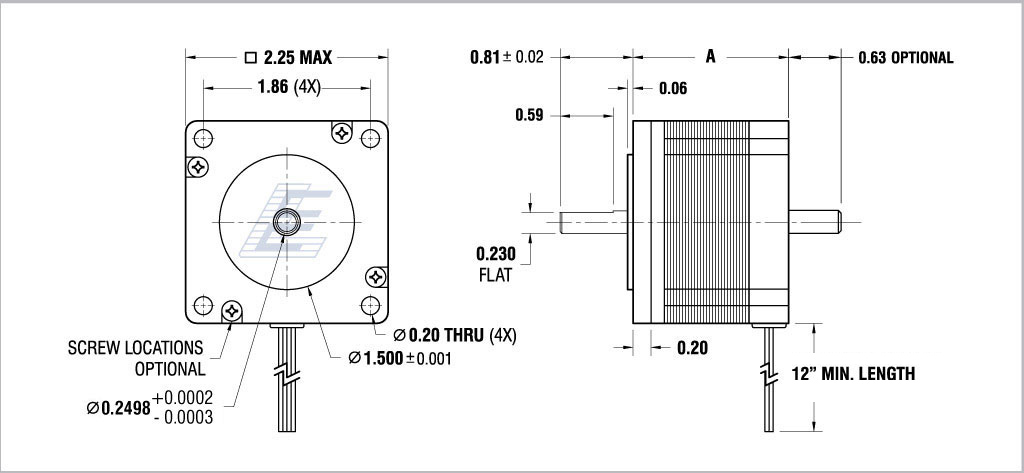

电机外形尺寸（单位：英寸）
